Pushpull Meter
Salient Features
● It is force measuring instruments for both push and pull.
● Red pointer retains the maximum reading encountered. By rotating it anti- clockwise set it to zero again.
● Because of gravity the meter when held inclined (or upside down) shows reading different than when held vertically. To nullify gravity effects, turn Zero adjust holding the meter the same way as will be held with measuring.
● Spot calibration gives better result . Apply standards force (the one nearest to the force to be measured), and with the zero adjust make the instrument read the value of the standard force.
Accuracy : ± 1 Division
Range gms | Least count gms | Width mm | Height mm | Weight Grams |
300 | 2.5 | 24 | 220 | 300 |
500 | 5 | 24 | 220 | 300 |
1000 | 10 | 24 | 220 | 300 |
2000 | 20 | 24 | 220 | 300 |
3000 | 25 | 24 | 220 | 300 |
5000 | 50 | 24 | 230 | 400 |
10000 | 100 | 30 | 230 | 400 |
20000 | 200 | 30 | 230 | 400 |
30000 | 250 | 300 | 230 | 400 |
50000 | 500 | 30 | 230 | 400 |
Law of weights and measures applicable.
Weights and Dimensions are nominal.
Limitations
● Meter with capacities below 2 Kg. may require a light tab to overcome static function.
● To prevent damages to inside parts, hold the pushing/pulling ROD firmly while changing accessories at its ends.
● Do not push the PULL END or PUSH END. It has overload capacity of 30%. METER can be clamped on SQUARE BODY.

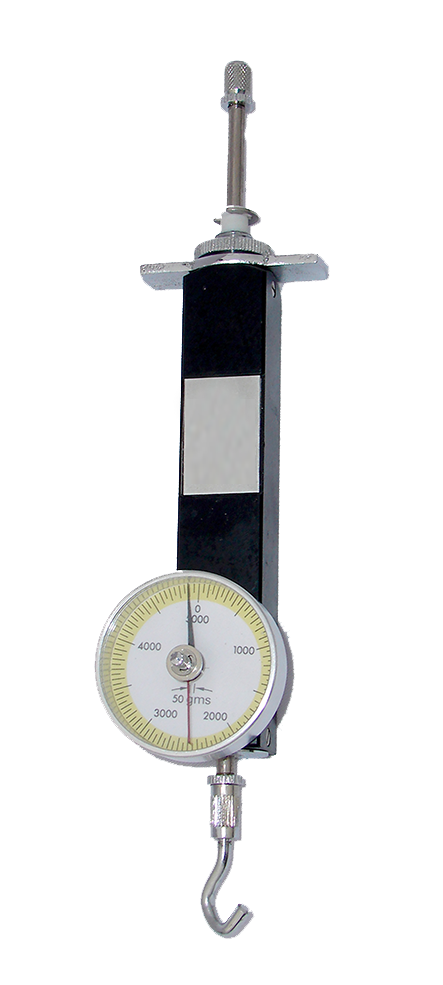

![](images/pushpullmeter.png)

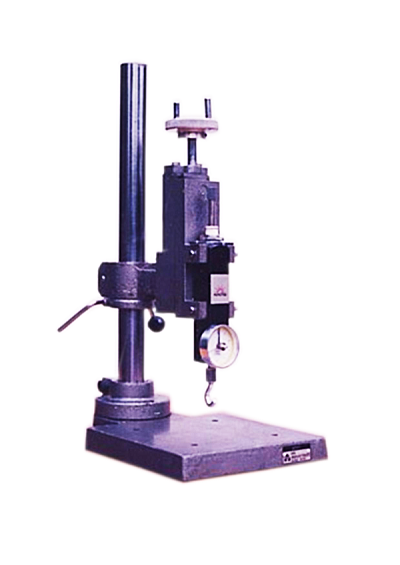

Stand assembly with Holder-Slide.
Technical Specifications
Base : 200 x 200 mm
Column Height : 400 mm
Slide Travel : 100 mm
Weight : 13 kg.
![](images/pushpullmetera1.png)
![](images/pushpullmetera2.png)
