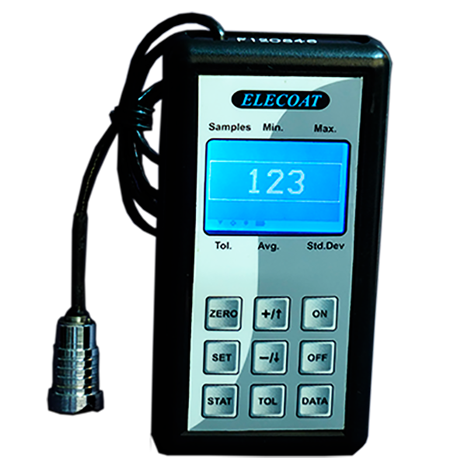

Elecoat-MS

Statistical Digital Coating thickness Gauge

Standard Features

Technology

● Latest technology with use of smart micro-controller.
● Direct Measurement - No Calibration Required for Most Of Surfaces.
● Highest Accuracy and Resolution.
● "Zero" and "SET" functions along with Foils and Zero base simplicities Calibration.
● Calibration Retaining System.

Probe Design

● Fully Metallic / High Quality Plastic Probe For High Service Life.
● Well Balanced and Spring Loaded Probe for Accurate measurements.
● Ideal Probe design to take reading in complex Field Areas.
● Strong Wear-Resistant Tip For Extra Service Life.
● Highly flexible Probe cable with Strain relief.

Ergonomics

● Compact and Light Weight Instrument.
● Full ABS high impact resistant body.
● Attractive Instrument display and visuals.
● External battery Compartment.

Energy Efficient

● Auto-Off Function.
● Sun Readable and Energy Saving Display.

Technical Specification
Range (Microns) 0-1500, 2000, 3000, 6000, 12000 Battery Supply Voltage / type 9 Volts (6F22)
Resolution(Microns) 0.1<20 Microns, 1>20 Microns Working Temperature 10-15 degree C
Minimum Base Thickness 0.3 MM Instrument Size 135*70*24
Minimum Measuring Area 6 MM Standard Probe Size 18 MM * 14 MM (D*L)     40 MM * 25 MM (D*L)
(For 12000 microns)

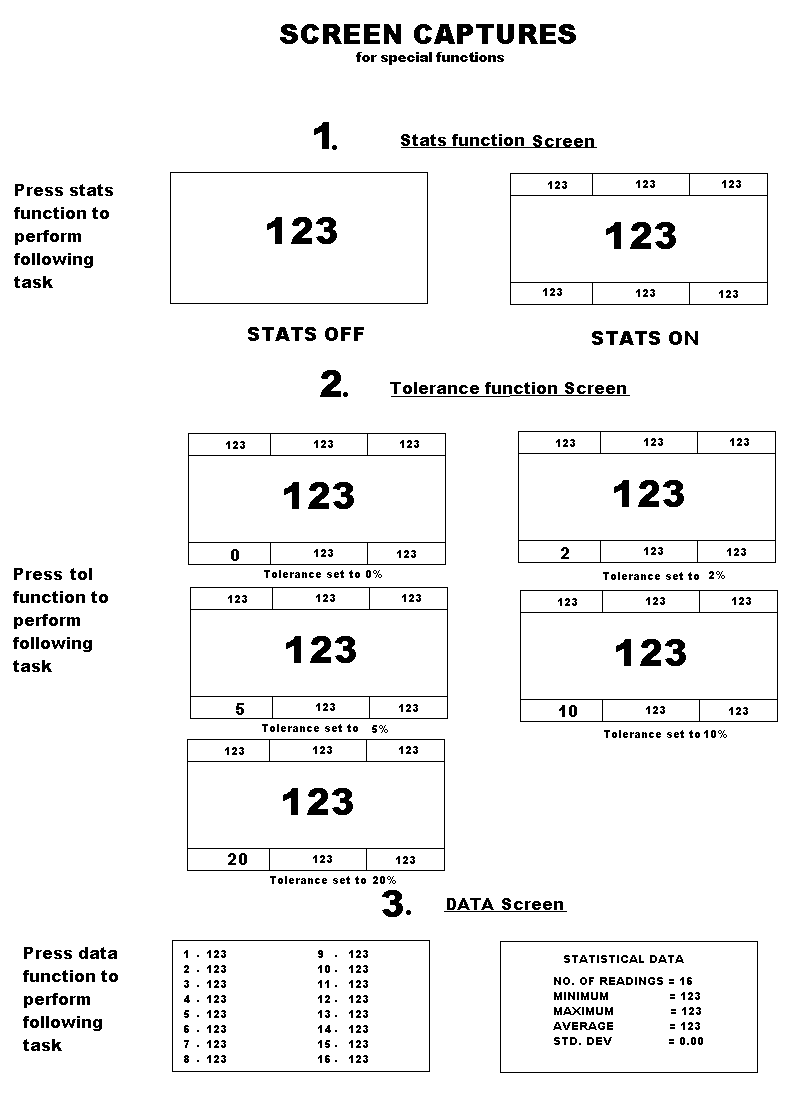

The instrument ELECOAT-MS has special functions they are as follows:-

1. STATS : - This includes various numerical functions which shows the following data

● Main reading.
● Number of readings.
● Maximum reading.
● Minimum reading.
● Average reading.
● Standard deviation.

Statistical Display of Elecoat-MS

2. TOL : This function is unique and best in class, preferably used as go-no.go functions it records the data only if it is correct. Say for Instance a tolerance of 2% is set for 100 microns then it will only show the reading between 98 and 102 microns .Data other than these two limits will not be recorded. Data if traced wrong say 95 microns in earlier case will give error beep. Hence it is easy to judge audio as well as from display.


3. DATA : - It will show all the data in simplified and detailed manner which will include last 50nos of stored readings. Also it will give brief conclusive idea regarding the readings taken.


Stored Data Elecoat-MS

Statistical Data Elecoat-MS


Aesthetic Display Feature : -
● The display used is graphic which gives more readability and visibility.
● The font used for main reading is bigger compared to other letters.
● Night vision is available as the display consists of blue backlit.


Zero Base

Zero Base along with a set of foils are able to check a coating thickness gauge’s functionality and calibration. In some cases, it may be difficult or impractical to obtain an uncoated surface. For this reason Electromech Instruments provides a wide range of Zero Test Plates.

Wooden Box

Attractive and Handy Wooden box to protect and carry instrument.

Calibration Foils

Calibration of foils is the ideal method for adjusting calibration of the coating thickness gauge to achieve accuracy. Also foils are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form.

Key Parameters
● Every foil has mentioned value in Microns.
● Foils have ±2% accuracy.
● Foils below 50µm have an accuracy of ±2µm.
