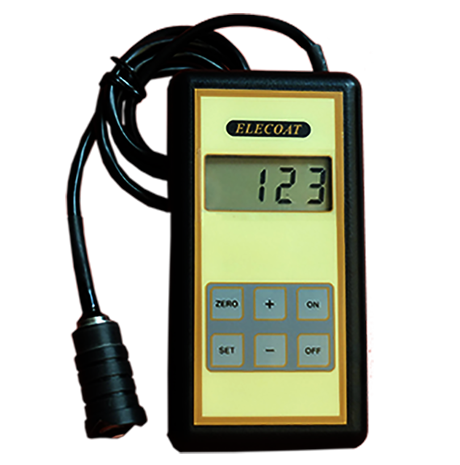

Elecoat-C
Standard Features
Technology
● Latest technology with use of smart micro-controller.
● Direct Measurement - No Calibration Required for Most Of Surfaces.
● Highest Accuracy and Resolution.
● "Zero" and "SET" functions along with Foils and Zero base simplicities Calibration.
● Calibration Retaining System.
Probe Design
● Fully Metallic / High Quality Plastic Probe For High Service Life.
● Well Balanced and Spring Loaded Probe for Accurate measurements.
● Ideal Probe design to take reading in complex Field Areas.
● Strong Wear-Resistant Tip For Extra Service Life.
● Highly flexible Probe cable with Strain relief.
Ergonomics
● Compact and Light Weight Instrument.
● Full ABS high impact resistant body.
● Attractive Instrument display and visuals.
● External battery
Compartment.
Energy Efficient
● Auto-Off Function.
● Sun Readable and Energy Saving Display.
| Range (Microns) | 0-1500, 2000, 3000, 6000 | Battery Supply Voltage / type | 9 Volts (6F22) |
| Resolution(Microns) | 0.1<20 Microns, 1>20 Microns | Working Temperature | 10-15 degree C |
| Minimum Base Thickness | 0.3 MM | Instrument Size | 135*70*24 |
| Minimum Measuring Area | 6 MM | Standard Probe Size | 18 MM * 14 MM (D*L) |
* Any Commercial / technical aspect may change depending on future development.
Zero Base
Zero Base along with a set of foils are able to check a coating thickness gauge’s functionality and calibration. In some cases, it may be difficult or impractical to obtain an uncoated surface. For this reason Electromech Instruments provides a wide range of Zero Test Plates.
Calibration Foils
Calibration of foils is the ideal method for adjusting calibration of the coating thickness gauge to achieve accuracy. Also foils are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form.
Key Parameters
● Every foil has mentioned value in Microns.
● Foils have ±2% accuracy.
● Foils below 50µm have an accuracy of ±2µm.
