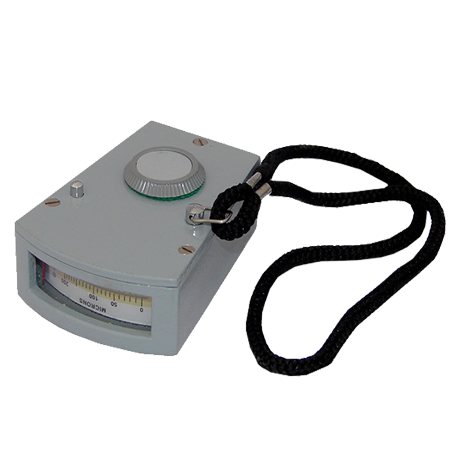

Coat Meter

Dial Type

Confirming to accuracy as recommended in

● SSPC-PA 2-73T,
● ISO 2178-1982 (E),
● ASTM B 499-87 and ASTM D 1186-87.


Measures the thickness of Non-magnetic coating on magnetic base.

The coating may be of materials like:

as Plating : Gold, Copper, Zinc, Tin, Chromium, Hard Chromium, Lead etc.
as Coating: Paint, Resineous coating.
as Lining: Resin, Rubber, Fibre Glass.
as Film: Plastic, Copper foils.
Parkerising
Metalising
Insulation coating.

The magnetic base may be of materials like

● Iron
● Nickel
● Cobalt
● Magnetic Stainless Steel etc.


Hari Malini joshi Prize 1988 Mahratta Chamber of Commerce & industries Pune.

● Dial type direct reading.
● Portable.
● Reading can be locked.
● Testing foils of different thickness are provided.
● Can be used in all positions viz. Vertical, horizontal or in an inclined plane.
● For precise reading mirror is provided below scale.
● Supplied in an attractive case and with instruction manual.

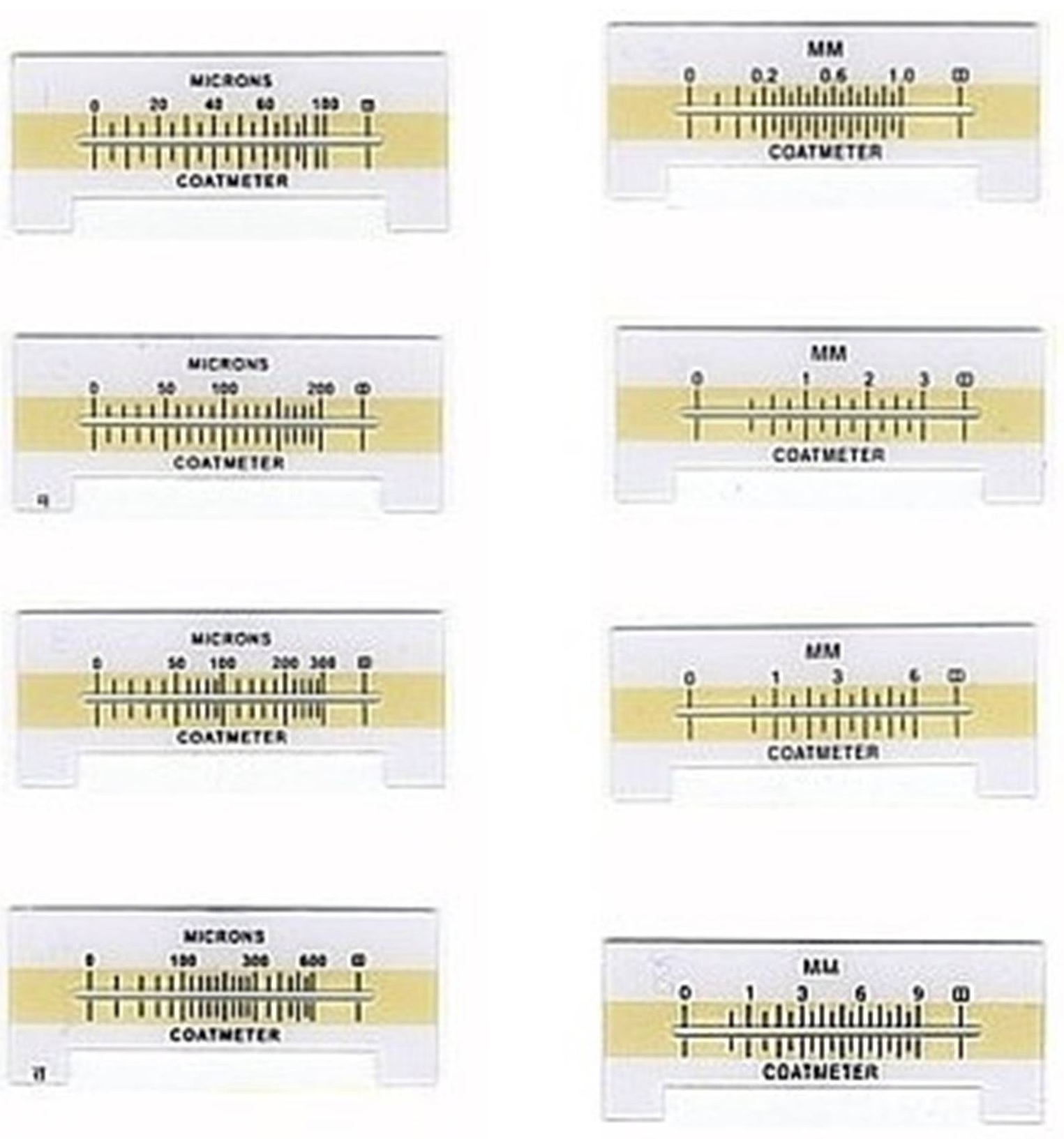

Available Scale

Specification


Accuracy as % Of Obtained reading (or ± 2.5 µ ) Min.base thickness (mm) Min.area of measurement (mm x mm) Min.radius of curvature (mm) Dimensions (mm) Weight (Grams)
10 1.5 20x50 50 H 80
W 60
B 30
300
Zero Base

Zero Base along with a set of foils are able to check a coating thickness gauge’s functionality and calibration. In some cases, it may be difficult or impractical to obtain an uncoated surface. For this reason Electromech Instruments provides a wide range of Zero Test Plates.

Wooden Box

Attractive and Handy Wooden box to protect and carry instrument.

Calibration Foils

Calibration of foils is the ideal method for adjusting calibration of the coating thickness gauge to achieve accuracy. Also foils are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form.

Key Parameters
Every foil has mentioned value in Microns.
Foils have ±2% accuracy.
Foils below 50µm have an accuracy of ±2µm.
